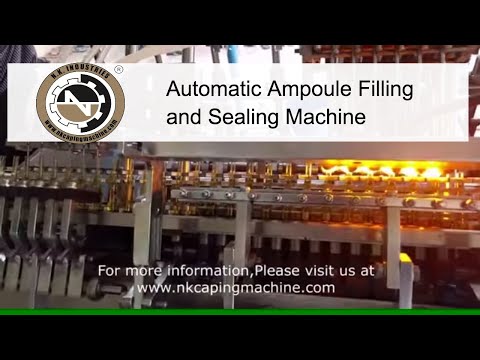

Ampoule Filling Sealing Machine

Product Description

N.K Industries is pioneer manufacturer and supplier of Ampoule filling sealing machine. The Series of ampoule filling sealing machine are available in 4 head, 6 head, 8 head configuration and particular model can be selected depending upon production output requirement.

The Unique feature of the machine is “No Ampoule – No Filling system” , “Post and Pre Gasing system” & unique eccentric cam based horizontal transportation system.

  • Salient Feature
  • Technical Specification
  • Add On Feature
  • Applicable Industries

Ampoule Filling Sealing Machine Is Equipped With Following State Of Art Feature:

  • Quite A Compact, Modular Design & CGMP Model.
  • Advanced Worm Gear Box & Gear Motor.
  • All Contact Parts With Liquid Made Using AISI 316L.
  • Foaming & Spillage Is Avoided Due To Diving Nozzles.
  • Can Fill Up To 20 Ml (With Minimum Change Part)
  • Facility To Incorporate Pre And Post Gasing System
  • Machine Having In-feed / Out Feed Tray Loading & Collection System With Filling & Sealing Mechanism
  • 6 Digit Precise Counting Arrangement Helps To Manage Production Process.
  • Outfitted With Emergency Button For Safety Concern.

Model

NAFS-60

NAFS-120

NAFS-180

Name

Four Head Ampoule Filling Sealing Machine

Six Head Ampoule Filling Sealing Machine

Eight Head Ampoule Filling Sealing Machine

Output

60 Ampoule / Minute Depending Upon Ampoule Diameter

120 Ampoule / Minute Depending Upon Ampoule Diameter

160 Ampoule / Minute Depending Upon Ampoule Diameter

Filling Accuracy

±1 %

±1 %

±1 %

Filling Range

1 Ml To 10 Ml

1 Ml To 10 Ml

1 Ml To 10 Ml

No Of Filling Head

4 Head

6 Head

8 Head

Power Requirement

230 V ,single Phase , 50 HZ

230 V ,single Phase , 50 HZ

230 V ,single Phase , 50 HZ

Electrical Supply

1 HP

1.5 HP

2 HP

Ampoule Size

1 Ml To 10 Ml Ampoule

1 Ml To 10 Ml Ampoule

1 Ml To 10 Ml Ampoule

Net Weight

350 KG

450 KG

500 KG

Dimension
(L X W X H) Mm

1250 X 1180 X 1250

1590 X 1180 X 1250

1850 X 1200 X 1300

Add On Feature Offered In Ampoule Filling Sealing Machine As Below :
  • PLC - HMI Interface
  • Nitrozen Flushing
  • Toughened Glass Or Acrylic Safety Cabinet For Machine.
  • Pharmaceuticals

Notes:

  • Right Of Technical Enhancement & Modifications Reserved
  • All Illustrations & Dimensions Are Described For Information Only
