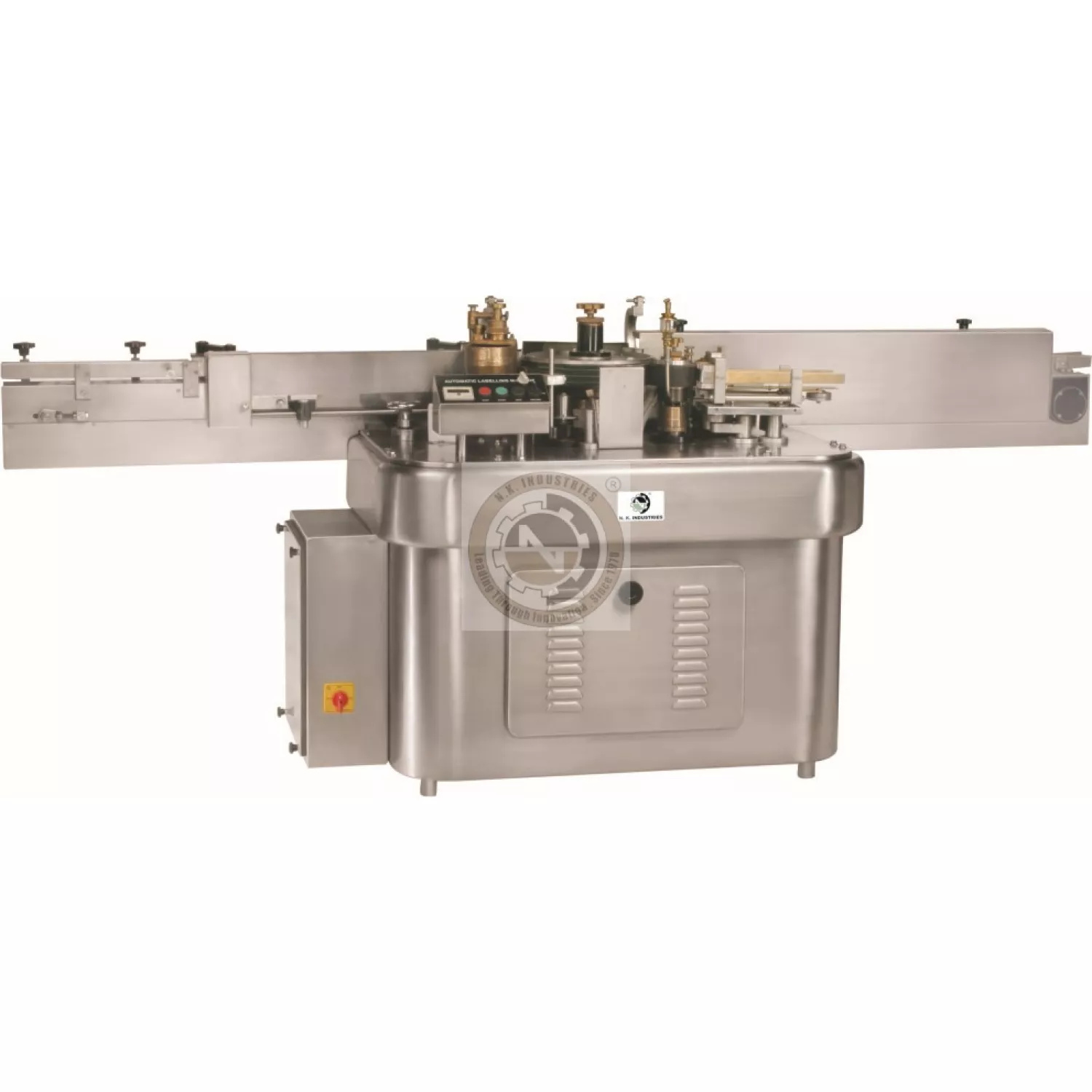

Automatic Wet Glue Labeling Machine

Product Description

N.K. Industries is a leading manufacturer, supplier, and exporter of the Automatic Wet Glue Labeling Machine (Cold Glue) Model NHL-150, designed to cater to a wide range of industries. This machine is specially designed for labeling round containers with pre-cut paper labels, offering an economical, efficient, and reliable solution for automatic labeling processes.

The NHL-150 model is not only cost-effective but also comes with a durable stainless steel finish, ensuring a long lifespan. Key features such as the "No Bottle No Label" system and "No Label No Glue" system make the machine highly efficient by preventing label wastage and ensuring a clean, well-maintained unit. Additionally, it offers optional features such as an Online Coding System, Inkjet Coding System, and an Acrylic Safety Cabinet for enhanced functionality and safety.

  • Salient Feature
  • Technical Specification
  • Add On Feature
  • Applicable Industries
  • cGMP Model: Ensures Compliance With Good Manufacturing Practices.
  • Stainless Steel Cladding And Hard Chrome Plating: Provides Durability And Resistance To Corrosion.
  • Heat-treated Moving Parts: Absorb Wear And Tear, Extending Machine Life.
  • Self-aligning Bearings: Ensure Smooth And Trouble-free Operation Of Rotating Parts.
  • No Container – No Label System: Prevents Label Wastage And Keeps The Unit Clean.
  • No Label – No Glue System: Ensures That No Glue Is Applied When There Is No Label, Preventing Mess And Waste.
  • Quick Changeover Time: Allows Fast Switching Between Different Container Or Label Sizes.
  • Speed Synchronization: Automatically Adjusts Speed Via % Speed Pot On The Operating Panel.
  • Overlap Labeling: Supports Labeling Where The Label Length Exceeds The Container’s Circumference.
  • Efficient Vacuum Pump: Provides Sufficient Suction To Hold Labels On The Pick-up Cylinder Securely

Direction

Left To Right.

Production Rate

Up To 150 Containers / Min Depending Upon Container Diameter And Label Dimension.

Unscramble

762 MM Diameter.

Electrical Supply

1.00 HP For Main Drive.

0.50 HP For Vacuum Pump.

Power Requirement

440 Volts, 3 Phase (4 Wire System) 50 Hz.

Height Of Conveyor

Adjustable From 800 To 850 MM

Dimensions

1830 MM (L) X 1100 MM (W) X 1100 MM (H)

Net Weight

580 KGS. (Approx.)

Gross Weight

950 KGS. (Approx.)

Container Diameter

16 MM To 70 MM MAX

Label Length

20 MM To 130 MM Maximum

  • Online Contact Coding Or Inkjet Coding System: For Adding Batch Or Product-specific Information.
  • Tower Light: Indicates Machine Status And Operation.
  • Low Vacuum Machine Stop System: Prevents Operation In Case Of Low Vacuum Pressure.
  • Acrylic Or Toughened Glass Safety Cabinet: Enhances Safety By Protecting Operators From Moving Parts.
  • Pharmaceuticals
  • Distilleries & Breweries
  • Cosmetics & Toiletries
  • Lube & Edible Oil
  • Pesticides
  • Food & Ancillaries

The NHL-150 Automatic Wet Glue Labeling Machine From N.K. Industries Offers A Versatile, Cost-effective, And Efficient Labeling Solution For A Wide Range Of Industries. With Its Robust Features, Quick Adaptability, And Minimal Changeover Time, It Ensures High Productivity While Maintaining Quality And Precision.


Why Choose N.K. Industries For Your Automatic Wet Glue Labeling Machine Requirements?



N.K. Industries Stands Out As A Trusted Partner In The Field Of Automatic Labeling Solutions. With A Focus On Quality, Durability, And Efficiency, The NHL-150 Model Delivers Exceptional Performance, Minimizing Downtime And Maximizing Throughput For Businesses In Various Industries. Whether For Pharmaceuticals, Food, Or Cosmetics, This Machine Is Designed To Meet Your Labeling Needs With Precision And Ease.

Notes:

  • Right Of Technical Enhancement & Modifications Reserved.
  • All Illustrations & Dimensions Are Described For Information Only.
