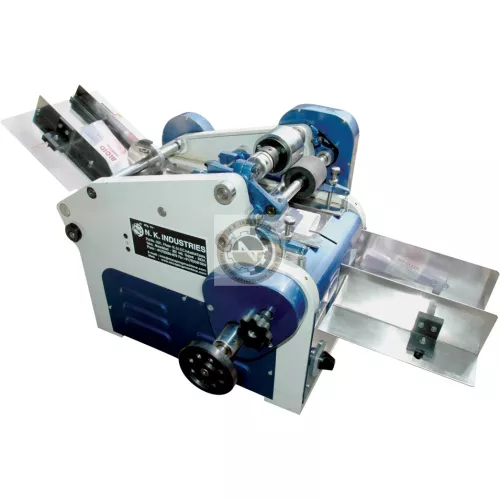

Label Coding Machine

Product Description

N. K Industries has gained distinguishing position in the industry as a leading supplier, manufacturer & exporter of range of Label Coding Machine which are used to print B.No. MFG.DT, EXP.DT. MRP.Rs. etc. on porous and non-porous surfaces of Label with the help of rubber stereo. Label coding machine are high speed and effective yet very economical.

In Sequence of operation of High-Speed Label coding Machine, Automatic feeding by slant magazine allows labels to a polished stainless-steel feed wheel then Label is picked up by rubber and it is fed to a timing chain, which carries the label under the printing head. Printing head is having a type block where individual types can be composed, or rubber stereos can be fixed on a block of half cylinder piece. No make ready or skill is involved, as the rubber backup cylinder evens out the impression on Label.

  • Salient Feature
  • Technical Specification
  • Add On Feature
  • Applicable Industries
  • CGMP Model
  • High Speed Around 250 Label / Minute
  • Printing With The Help Of Rubber Stereo
  • AISI 304 Construction
  • Slant Magazine For Label Feeding
  • Oscillating Distributor Roller Spreads Ink Evenly Shaded Unbroken, Fully To The Ink Roll.
  • All Shafts Of Stainless-Steel Materials Rotate In Sintered Bronze Bushing (oil-less Bushes). Other Major Parts Are Also Stainless-steel Material.

Over All Dimensions

1070 X 680 X 450

Speeds

125,180,250 Label /Min

Label Size

25 X 50 Mm. To 150 X 200mm

Weight

100 Kg

Power

0.25 HP /1440RPM/414 V 3Phase & Single Phase.

Not Applicable

  • Pharmaceuticals
  • Injectable
  • Cosmetics
  • Pesticides
  • Chemical
  • food And Beverages
  • Liquor
