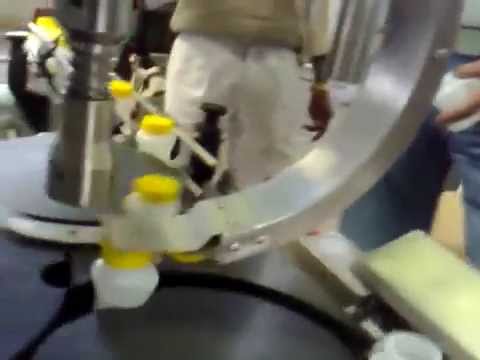

Multi Head Rotary Shut Pick Up Type Screw Capping Machine

Product Description

The Series of Automatic Multi Head Rotary Screw Capping Machine contain various models like 4 head Screw Capping machine, 6 head Screw Capping machine, 8 head Screw Capping machine, 12 Head Screw Capping machine & Particular Model can be selected according to output requirement. Output speed of this series is from 100 containers per minute to 250 containers per minute. These series of model also known as Shut pick up type rotary screw capping machine as screw cap directly pick by shut on to containers. Rotary screw capping machine series finds their application in wide range of industries like Pharmaceuticals, Distilleries & Breweries, Cosmetics & Toiletries, Lube & Edible Oil, and Pesticides & Food where they can deliver very high output with bare minimum human intervention.

Series of Automatic Multi Head screw Capping Machines are being integrated with astounding safety features like “safety clutches” at star wheel system and feed worm, “No Bottle No Cap system” & “Automatic cap feeder on off system”. Depending upon type of Screw cap / closure, machine can be integrated with Mechanical cap feeder orientator or Vibrator Cap feeder. As an alternative, waterfall type elevator also available for mass storage of Screw cap. Machine can be made available with Toughened glass safety cabinet or Acrylic Glass safety cabinet as optional for safety feature. It can work with wide shaped of container like Round, Square with least formats part. All Screw capping models are being made using AISI 304 and aluminum alloy for trouble-free maintenance and long life.

Salient Feature
Technical Specification
Add On Feature
Applicable Industries

CGMP Model, Compact Model & Modular System.
Parts Coming In Contact With Bottle / Screw Cap Are Made Out Of AISI 304, Good Housekeeping
Single Motor Synchronizes Conveyor, Star Wheels And Platform Turret.
A Special Safety Clutch Devices Are Being Integrated On In Feed & Out Feed Star Wheel System For Stoppage Of Machine In The Event, Vial Is Over Turned.
A Special Background Suppression Sensor Stops Machine Automatically In The Event, There Is No Screw Cap In Delivery Chute.
No Bottle – No Cap System.
Single Cam System Which Controls Head Height & Cap Pick-off Assembly
Specially Design Jaw Type Head For Torque Adjustment. (Due To This There Shall Be No Damage To The Thread Of The Cap And Correct Cap Application Is Done. SO There Will Be No Complaint For Loose Capping)
Various Cap Feeding Option Available Like Vibrator Feeder System, Mechanical Cap Feeder Orientator Or Water Fall Type Elevator.
Fast Format Changeover From One Size Of Container To Other Size Due To Use Of Custom Designed Part.
Distinctively Designed Position System Prevents From Cap Being Jammed.
6 Digit Precise Counting Arrangement Helps To Manage Production Process.
Outfitted With Emergency Button For Safety Concern.
All Electrical & Brought Out Items Are Of CE Certified.

Machine Name	4 Head Screw Capping Machine -Shute Pick Up	6 Head Screw Capping Machine -Shute Pick Up	8 Head Screw Capping Machine -Shute Pick Up	12 Head Screw Capping Machine -Shute Pick Up
Model	NKSC-150	NKSC-250	NKSC-350	NKSC-450
Direction	Left To Right	Left To Right	Left To Right	Left To Right
Production Rate	Up To 100 Bottle Per Minute For 100 Ml Bottle	Up To 120 Bottle Per Minute For 100 Ml Bottle	Up To 180 Bottle Per Minute For 100 Ml Bottle	Up To 250 Bottle Per Minute For 100 Ml Bottle
Electrical Supply	1 HP For Main Drive 0.25 HP For Orientation Unit	1 HP For Main Drive 0.25 HP For Orientation Unit	2 HP For Main Drive 0.50 HP For Orientation Unit	2 HP For Main Drive 0.50 HP For Orientation Unit
No Of Screw Capping Head	4 Head	6 Head	8 Head	12 Head
Auto Cap Pick Up Ratio	≥99.7%	≥99.7%	≥99.7%	≥99.7%
Qualified Capping Ratio	≥99.5%	≥99.5%	≥99.5%	≥99.5%
Bottle Breakage Ratio	≤0.5%	≤0.5%	≤0.5%	≤0.5%
Power Requirement	440 V ,3 Phase (4 Wire System ) 50 HZ	440 V ,3 Phase (4 Wire System ) 50 HZ	440 V ,3 Phase (4 Wire System ) 50 HZ	440 V ,3 Phase (4 Wire System ) 50 HZ
Height Of Conveyor	Adjustable From 800 To 850 Mm	Adjustable From 800 To 850 Mm	Adjustable From 800 To 850 Mm	Adjustable From 800 To 850 Mm
Bottle Dia	22 Mm To 100 Mm Max	22 Mm To 100 Mm Max	22 Mm To 100 Mm Max	22 Mm To 100 Mm Max
Bottle Height	55 Mm To 250 Mm Max	55 Mm To 250 Mm Max	55 Mm To 250 Mm Max	55 Mm To 250 Mm Max
Screw Cap Dia	22 Mm To100 Mm Dia Cap (with The Help Of Change Part)	22 Mm To 100 Mm Dia Cap (with The Help Of Change Part)	22 Mm To 100 Mm Dia Cap (with The Help Of Change Part)	22 Mm To 100 Mm Dia Cap (with The Help Of Change Part)
Dimension (L X W X H) Mm	1530 X 815 X 1900	1830 X 812 X 1900	2130 X 915 X 1900	3050 X 1050 X 1900

PLC - HMI Interface
Cap Feeder Elevator
Automatic Head Up And Down System
Toughened Glass Or Acrylic Safety Cabinet For Machine.
Puck System For Unstable Container.

Pharmaceuticals
Distilleries & Breweries
Cosmetics & Toiletries
Lube & Edible Oil
Pesticides
Food & Ancillaries
Mineral Water

Notes:

Right Of Technical Enhancement & Modifications Reserved.
All Illustrations & Dimensions Are Described For Information Only.

Multi Head Rotary Shut Pick Up Type Screw Capping Machine

Product Description

Related Products

Automatic Single Head Screw Capping Machine

Multi Head Rotary Shut Pick Up Type Screw Capping Machine

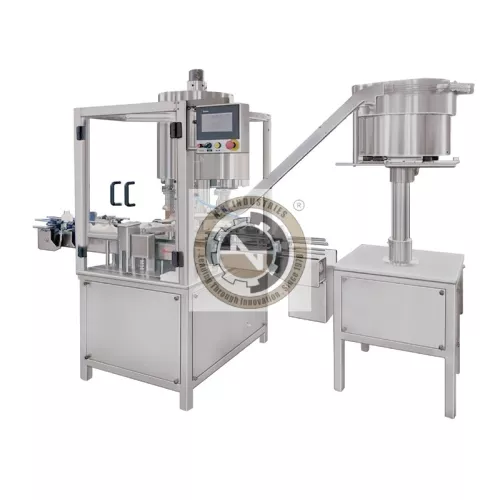

Automatic Multi Head Pick And Place Rotary Screw Capping Machine

Automatic Monoblock Inner Plugging Screw Capping Machine

Range of Machine by NK Industries

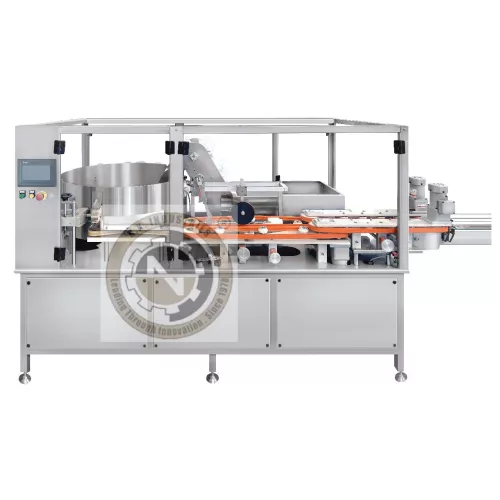

Automatic Bottle Unscrambler Machine

Capping Machine

Labeling Machine

Filling Machine

Powder Filling Machine

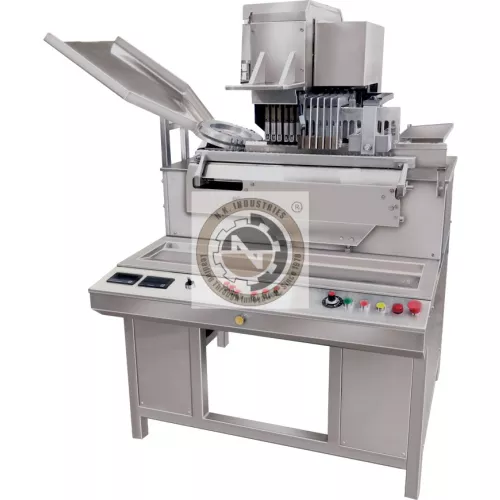

Vial Ampoule Inspection Machine

Sterilization Tunnel

Bottle Foil Sealing Machine

Shrink Tunnel

Packaging Machine

Batch Coding Machine

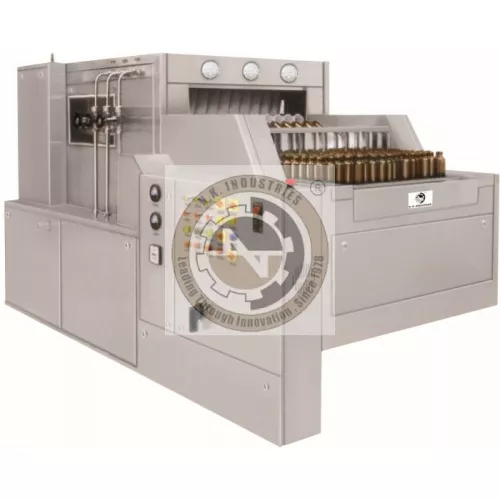

Washing Machine
