Tabletop Manual Liquid Filling Machine

Product Description

Manual Liquid Filling Machine

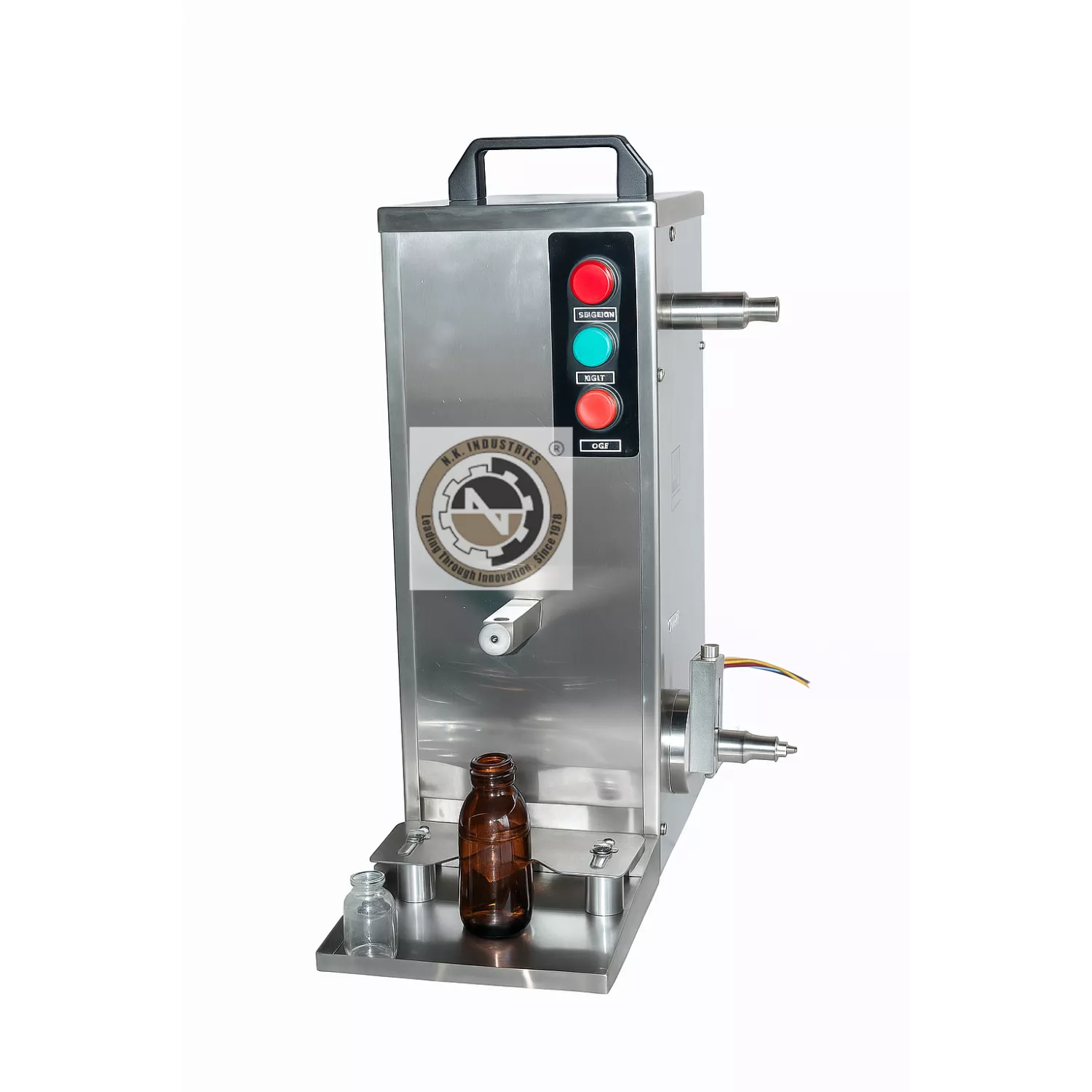

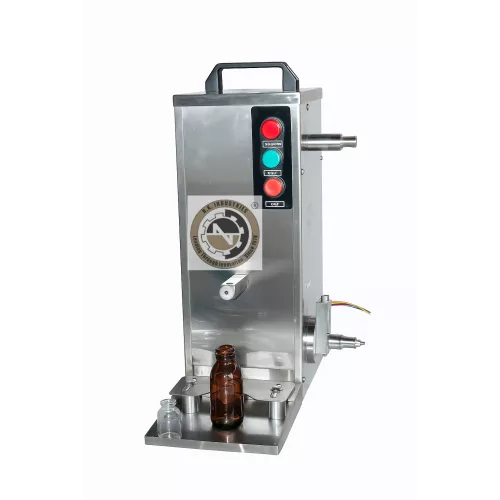

Tabletop Manual Liquid Filling Machine Model NKLF-20 is suitable for Round Bottle, Flat shape Bottles & Glass Vials with maximum speed of 10 containers per minute depending upon the human efficiency. The output depends upon the various factors like nature of Liquids, Neck Diameter or Vial/Bottle and Fill Volume.  It is best solution for those industries where output demand is very low and accurate filling is prime need.

Machine structure is in Stainless Steel finish with Single Head Operation. All parts coming in contact with Liquids are made from AISI 316L. The Machine can fill from 5 ml to 1000 ml with different set of syringes.

  • Salient Feature
  • Technical Specification
  • Add On Feature
  • Applicable Industries

Our State Of Art Tabletop Manual Liquid Filling Machine Is Equipped With Following Features

  • CGMP & Table TOP Model
  • Compact Footprint
  • All Contacts Parts With Liquid Are Made Using AISI 316L & Machine Frame Construction Is Of AISI 304 & Imparts Vibration Free Operation.
  • The Stroke Of Nozzle Holder & Height Of The Nozzles Is Adjustable For Achieving Smooth Entry And Exit Of Nozzles Inside The Neck Of Containers And Avoids Splash / Spillage Of Liquid Or Dripping At Sides.
  • Wide Range Of Selection Of Syringes Available To Fill From 5 Ml To 1000 Ml.

Machine Name

Manual Liquid Filling Machine

Model

NKLF-20

Output

10 Container Per Minute

Filling Accuracy

±1 %

Filling Range

2 Ml To 500ml
(Above 500ml Help Of Stroke System)

No Of Filling Head

1 Head

Power Requirement

230 V ,single Phase , 50 HZ

Electrical Supply

0.25 HP

Container Diameter

16 Mm To 100 Mm

Height

Up To 100 Mm

Net Weight

100 KG

  • Variable Frequency Drive For Speed Variation
Tabletop Manual Liquid Filling Machine Is Applicable In Following Industries.
  • Pharmaceuticals
  • Mineral Water Bottling Plant
  • Distilleries & Breweries
  • Cosmetics & Toiletries
  • Lube & Edible Oil
  • Pesticides
  • Food & Ancillaries

Note:

Þ        Right Of Technical Enhancement & Modifications Reserved

Þ        All Illustrations & Dimensions Are Described For Information Only
